VF Transformer


SPECIFICATION NO. : IRS : TC 22-76


DESCRIPTION :

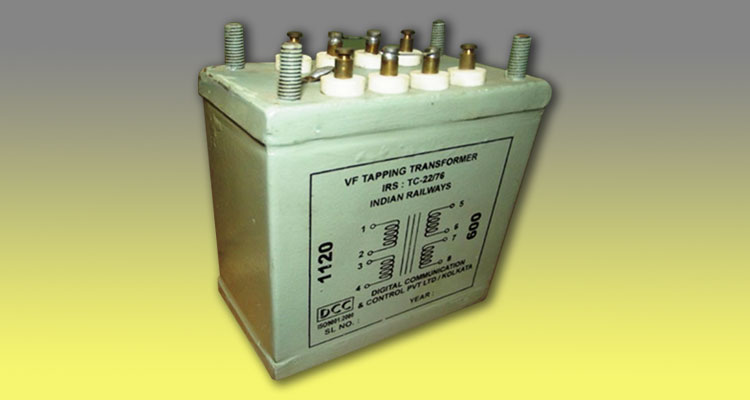

V.F And Signaling transformer used for derivation and termination of underground tele-communication cable with various impedance ratio such as – (i) 1120:1120 (ii) 470:1120 (iii) 1120:600.Other impedances as per requirement of customer. The transformers are enclosed in rectangular M.S. Box and sealed.

TECHNICAL DETAILS :

Sl. No. Name Type 1 Type 2 Type 3 Type 4
1 Characteristics Terminating & Tapping Transformer For V.F.side Circuits excluding telegraph Terminating & Tapping Transformer For Plastic Insulated V.F. Quad Terminating &Tapping Transformer For Inter Wire telegraph Frequency Frequency Band
2 Impedance Ratio 1120:1120±2% 470:1120± 2% 1120:600± 2% Type 1,3 & 4-800Hz Type 2 - 50Hz DC
3 Insulation Resistance with 500V Winding-Winding-Case 10,000 MΩ 10,000 MΩ 10,000 MΩ ---
4 Dielectric Strength Winding-Winding-Case 2KV(rms) FOR 1 min. 2KV(rms) FOR 1 min. 2KV(rms) FOR 1 min. 50Hz
5 Return Loss More than 20dB More than 20dB More than 20dB ---
6 Insertion Loss Not more than 0.6dB Not more than 0.6dB Not more than 0.6dB Type 1 – 300Hz to 3.4KHz, Type 3 & 4 – 150Hz to 3.5KHz
7 Bridging Loss with secondary open Not more than 0.015dB --- Not more than 0.015dB DO
8 Attenuation Distortion Within±0.1dB --- Within±0.1dB DO
9 Winding Balance More than 60dB More than 60dB More than 60dB DO
10 Open Circuit Drain --- --- 600Ohms side open,
1120Ohms side:-
20V ≤ 2mA 50V ≤ 7mA
Type 4- 150Hz.
