It is designed to work with nominal input voltage of 24V/ 60V/ 110V as per the requirement with variation of –10% to +20%. It is suitable to operate from battery on float/boost charge with battery charger. It is available with FIXED and variable output voltage for different current rating as per requirement.

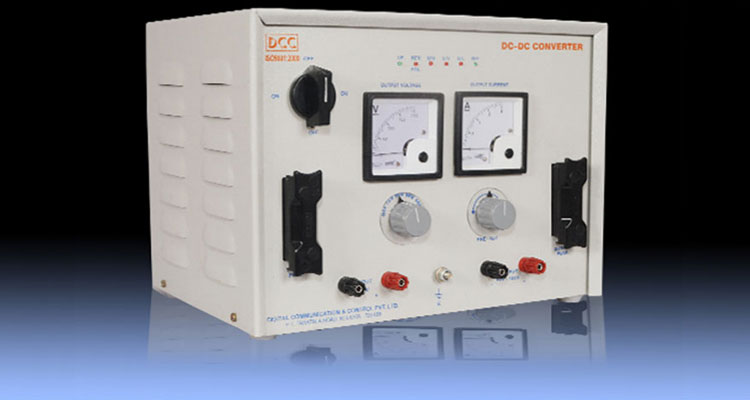

It is designed to work with nominal input voltage of 24V/ 60V/ 110V as per the requirement of the customer with variation of –10% to +20%. It is suitable to operate from battery on float/boost charge with battery charger. The DC/DC Converter is of natural air cooled type and is suitable for indoor use. It is available in shelf/floor type. The converter is provided with self resetting type protection for under voltage/over voltage of input and overload /short circuit of DC output. The equipment is designed to work satisfactorily in the temperature range from 0°C to 60°C with relative humidity upto 95%.
The electronics time-delay device should operate satisfactorily either from primary or secondary cells or unsmooth full wave rectifier supply from single phase, 50 HZ sinusoidal AC Supply. The rated current, voltage and ambient temperature should be as follows : -
Nominal Input Voltage : |
24,60,110 V DC - 10% to + 20% or as per requirement of the customer. |
Nominal Output Voltage : |
5,10,12,60,110V DC, 24 - 30 V DC (STEP OF 2V), 12 - 24V, 24 - 40V, 40 - 60V DC (STEP OF 4V), 60 - 100V, 110 - 150V DC (STEP OF 10V) or as per requirement of customer. |
Output Capacity : |
As per requirement of the customer. |
Voltage Regulation : |
Within ±1% for all output. |
No Load Current : |
Less than 10% of rated I/P current at full load. |
Overall Efficiency : |
≥65% for <50VA, ≥75% for 50VA to <150VA, ≥85% for >150VA |
