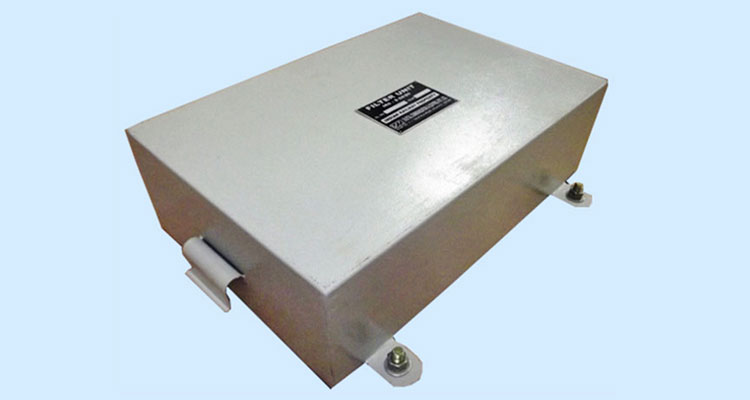

Filter Unit

Filter Unit

SPECIFICATION NO. : IRS : S 68/89

DESCRIPTION :

The equipment is used in Single Line / double Line Block Circuit for protection of instrument & staff from influence of 25KVAC electrified section. The equipment comprises of Protective chokes , 4-terminal condensers and Rare gas lightning dischargers.

TECHNICAL DETAILS :

The equipment comprises of the following:

i) Protective Chokes- L1, L2, L3 and L4
ii) 4-Terminal Condensers C1 and C2
iii) Rare Gas Lightning Dischargers N1 & N2
Input Voltage :	600V AC
Insulation Resistance :	100MΩ with 500VDC.
AC Immunity :	Output <2.5V across 600Ω Impedance at Input 600V 50Hz.
Operating Temperature Range :	-10 °C to +70 °C.
